  • Description

    • Description
      An SEPP (single-ended push pull) OTL circuit operating in Class-A, the Little Dot MK II greatly increases sound quality, dynamic range, output impedance, and harmonic distortion over the celebrated Little Dot II++.
      The Little Dot MK II now also provides gain control of 3, 5, and 10 via internal DIP switches for fine-tuning so you can maximize synergy with almost any headphone you have, whether it be 32 ohms or 600!
      The Little Dot MK II also gains the driver tube-rolling options from the rest of the MK-series with the ability to roll 6JI, WE403A/B, GE5654, M8100, CV4010, EF95, etc at its factory jumper setting, and with jumper pins shorted, EF92, CV131, and all equivalents and drop-in replacements!


      Review of Little Dot MKII:
       Little Dot MK II Review @ Head-Fi




      Parameters:
      SEPP (Singled-ended Push Pull) OTL in Class-A
      Input: Gold-Plated Unbalanced Phono (RCA) Jacks
      Output: 1/4" Gold-Plated Stereo Headphone out
      Driver Tubes: 6JI
      Power Tubes: 6N6
      Frequency Response: 20HZ - 50KHz (-1dB)
      THD+N: 0.1% (50mW into 300 ohms)
      Suitable Headphone Impedance: 32 - 600 ohms
      Input Impedance: 50K ohms
      Pre-Amplifier Output Impedance: 600 ohms
      Pre-Amplifier Gain: 3-10x (also controlled via gain switches)
      Pre-Amplifier Voltage: 10V RMS
      Weight: 2.5 kg or 5.5 lbs.
      1 Year Little Dot Warranty

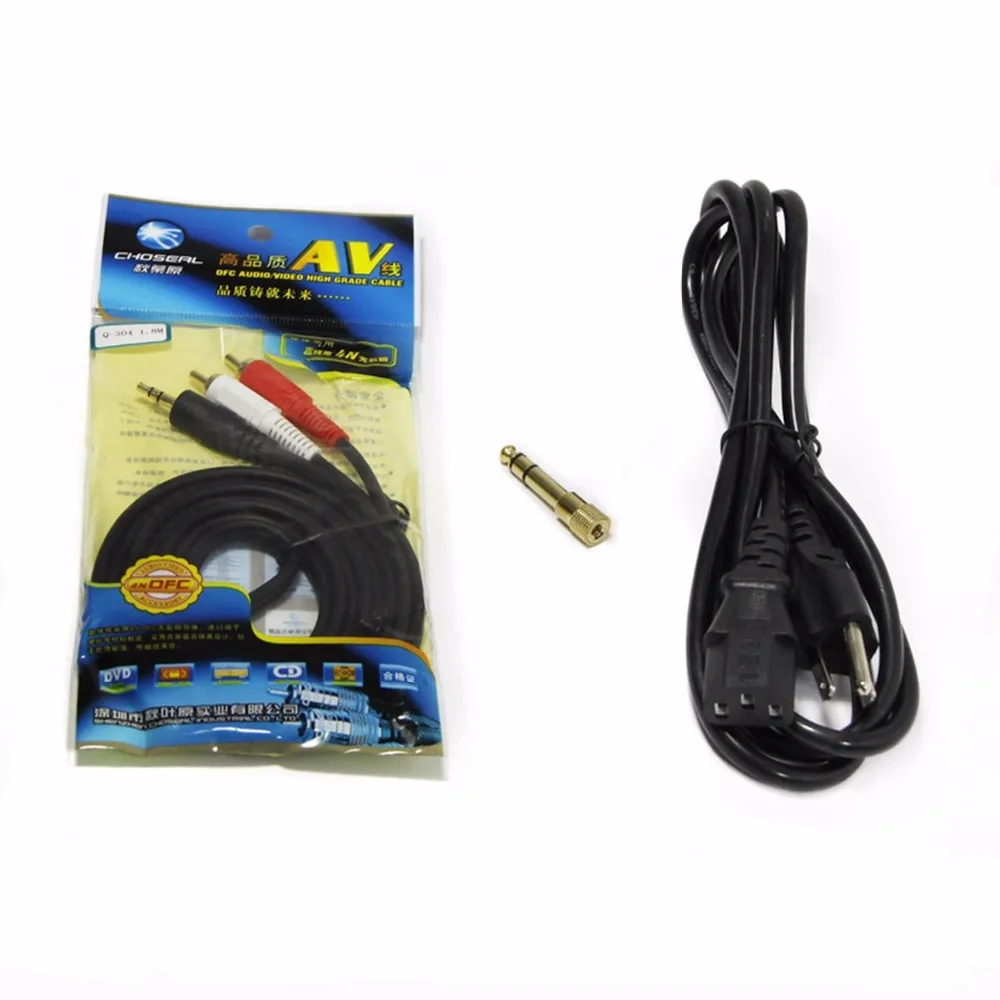

        Power Cord Note: Little Dot amplifiers ships with a standard Type-B power cord (American 3-pin or U-ground) suitable for use in areas such as North America, Japan, Taiwan, etc. If your country's outlets use other power cord types (ex. Schuko) you will need to provide you own power cord. You likely have several spares around your home, as any standard power cord (like your computer's power cord) will work perfectly fine. We do apologize for any inconvenience!



    1 (1) 1 (3) 1 (4) 1 (5) 2

















Little Dot MKII Tube Headphone Amplifier Pre-Amplifier

USD
$168.99
