DescriptionFeatures

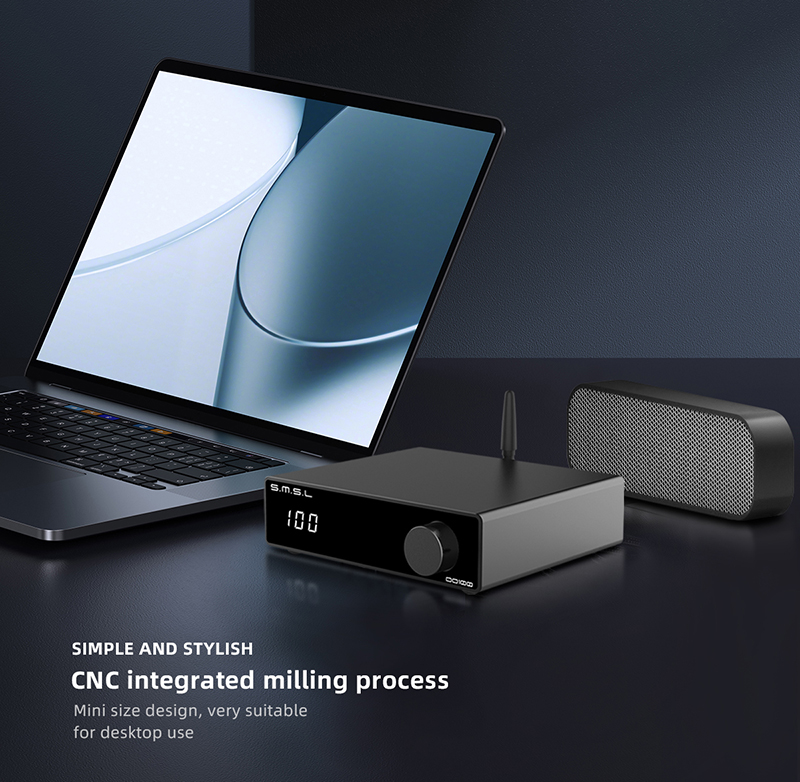

►Mini size design, very suitable for desktop use;
►CNC integrated milling process, simple and stylish;

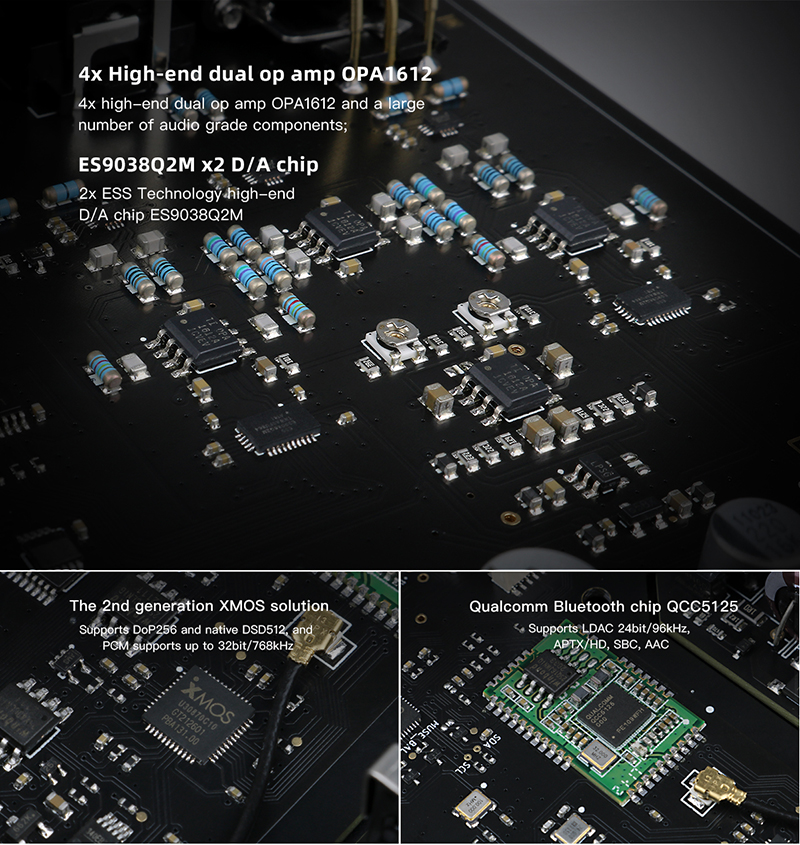

►2 pieces of ESS Technology high-end D/A chip ES9038Q2M;
►Qualcomm latest Bluetooth chip supports LDAC 24bit/96kHz, APTX/HD, SBC, AAC;
►4x high-end dual op amp OPA1612 and a large number of audio grade components;
►The 2nd generation XMOS solution supports DoP256 and native DSD512, and PCM supports up to 32bit/768kHz;
►Audio clock processing circuit, greatly reducing the clock jitter;
►All input ports (except Bluetooth) support DSD transmission, coaxial and optical supports DoP64;
►Built-in specially designed low-noise switching power supply;
►Built-in discrete component linear power supply and multiple low-noise
►Power supplies for analog circuits;
►High-quality gold-plated input and output connection terminals;
►Japan Audio Association (JAS) Hi-Res certification;
►Equipped with full-function remote control.
Specifications

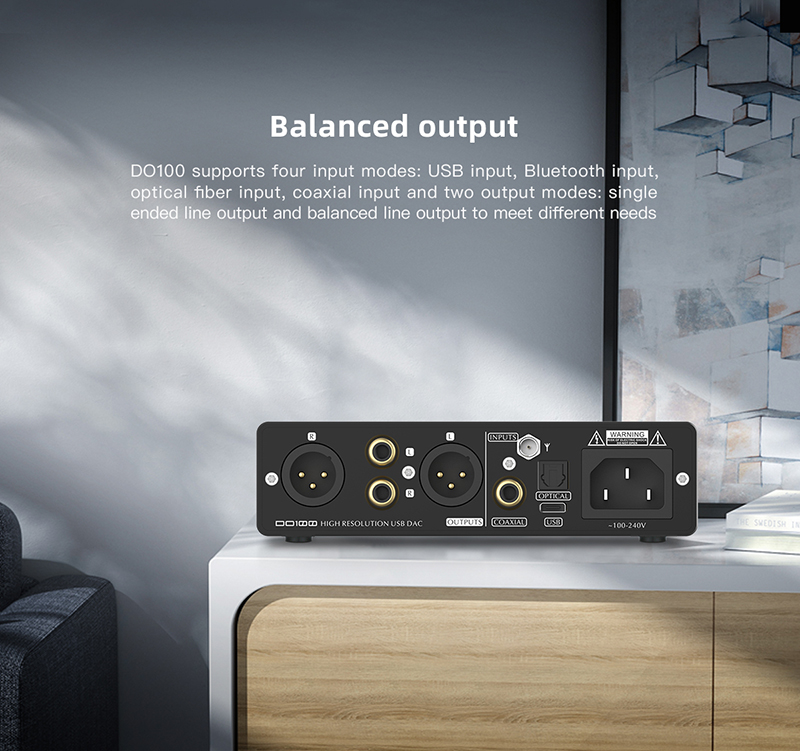

Input: USB / Optical / Coaxial / Bluetooth
Output: XLR / RCA
Output Level: XLR 4.0Vrms/RCA 2.0Vrms
THD+N: 0.00008% (-121dB)
Dynamic range: XLR 127dB/RCA 125dB
SNR: XLR 126dB/RCA 124dB
Output impedance:100Ω
USB transmission: USB1.1, USB2.0(Asynchronization)
USB compatibility: Windows 7/8/8.1/10/11(Needs Driver),Mac OSX10.6 or Later、Linux(Driverless)
Bit depth :
USB:1bit,16~32bit
Optical / Coaxial :1bit,16~24bit
Sampling rate :
USB:PCM 44.1~768kHz,DSD 2.8224~22.5792MHz
Optical / Coaxial:PCM 44.1~192kHz,DSD DSD64(DoP)
Bluetooth specification: 5.0
LDAC: 24bit/96kHz (990kbps/660kbps/330kbps)
aptX-HD: 24bit/48 kHz_576kbps
aptX : 16bit/44.1 kHz_352kbps
SBC:16bit/44.1 kHz_328kbps
AAC: 16bit/44.1 kHz_320kbps
Power Consumption: 5W
Standby power : <0.5W
Size: 150x128x39mm(WxHxD)
Weight: 560g / 1.23Ibs
Package list:
1* SMSL DO100
1* Remote control
1* Bluetooth antenna
1* USB cable
1* AC power cable
1* User manual
1* Warranty card
Test review for SMSL DO100 DAC by famous reviewer
ASR: https://www.audiosciencereview.com/forum/index.php?threads/smsl-do100-review-stereo-dac.34198/
Vivir Digital(Roys): https://youtu.be/zcFM5thejGY
-
